Grafite pencils

Although most of us have heard someone refer to the material within a graphite pencil as "lead", you may be surprised to learn that there isn't any lead there at all. Instead, graphite is a form of carbon and is completely safe for drawing.

In this lesson, we'll take a look at the different grades of graphite, why they are designated as they are, and which pencils you may need (and the ones you don't) to find success with graphite drawing.

Graphite Grades

Graphite is produced in various grades or degrees according to the softness or hardness of the material. Different grades produce different types of marks. The grade of the pencil is usually designated on the side or the end of the pencil. For drawing pencils, this designation is an alphanumeric value.

Writing pencils differ in how they are categorized and usually only feature a number. For example, a #2 pencil is a standard writing pencil - which happens to be of the same softness as an "HB" drawing pencil.

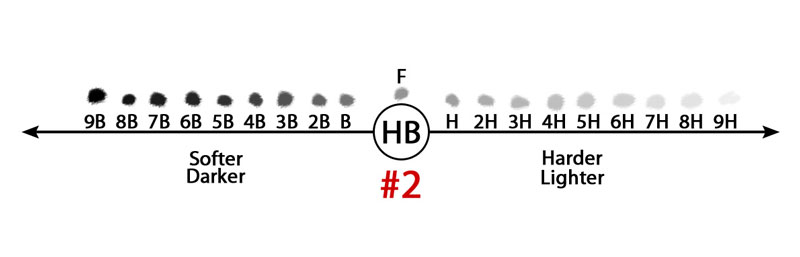

Grades of drawing pencils are organized in a scale based on softness or hardness. An "HB" pencil is found directly in the center of the scale.

"H" pencils feature harder graphite. (The "H" stands for "hard".) "B" pencils feature softer graphite. (The "B" stands for "black".)

The number found in front of the letter reveals just how soft or hard the pencil is. In other words, a "4H" pencil is harder than a "2H" pencil while a "4B" pencil is softer than a "2B" pencil.

Harder pencils produce lighter marks since less of the material is released as pressure is applied. Softer pencils make darker marks since more of the material is released. Therefore, a "4H" pencil will produce lighter marks than an "2H" pencil while a "4B" pencil will make darker marks than a "2B" pencil.

What is an F Pencil?

The "F" pencil is similar in mark to an "HB" pencil, only slightly lighter. Like an "HB" pencil, it is capable of producing darker and lighter marks, but without any extremes. The graphite material found in an "F" pencil is slightly harder than an "HB" pencil meaning that it can stay sharp for a longer period of use. For this reason, this pencil is designated as "fine" which is why this pencil is labeled with an "F".

The Advantages and Disadvantages of Using Different Grades

A clear advantage of the "H" pencils is that they can stay sharp for a longer period of use. In contrast, "B" pencils tend to dull quickly due to their softness.

"H" pencils are better suited for filling the tooth or texture of the paper, resulting in smoother transitions of tone and value. "B" pencils fill the tooth to a lesser degree, making the texture of the paper more noticeable. By combining "H" and "B" pencils in a drawing, smooth transitions of tone can be developed without compromising a full range of value. You may be tempted to use a hard pencil such as a "4H" for a preliminary sketch since the mark is light. If your pressure is light, then this is an acceptable practice. But if too much pressure is applied to the pencil, then grooves can be created in the surface of the paper. These grooves become difficult to fill in or cover with softer graphite applications. This can lead to noticeable inconsistencies in the drawing.Another factor to consider is "graphite shine". Graphite is naturally shiny. However, this shine can be reduced if the graphite is applied using a layered approach. Lighter pencils may be used earlier in the process followed by darker pencils. Even and consistent pressure should be applied with each layer so that the tooth of the paper is not destroyed. (Flattening the tooth often increases the shine.)

"B" pencils tend to produce more shine compared to "H" pencils so it's recommended to gradually increase the contrast in a drawing using a layered approach.
